[IN PROGRESS]Lift Station
Forney Mustang Creek Lift Station Phase II

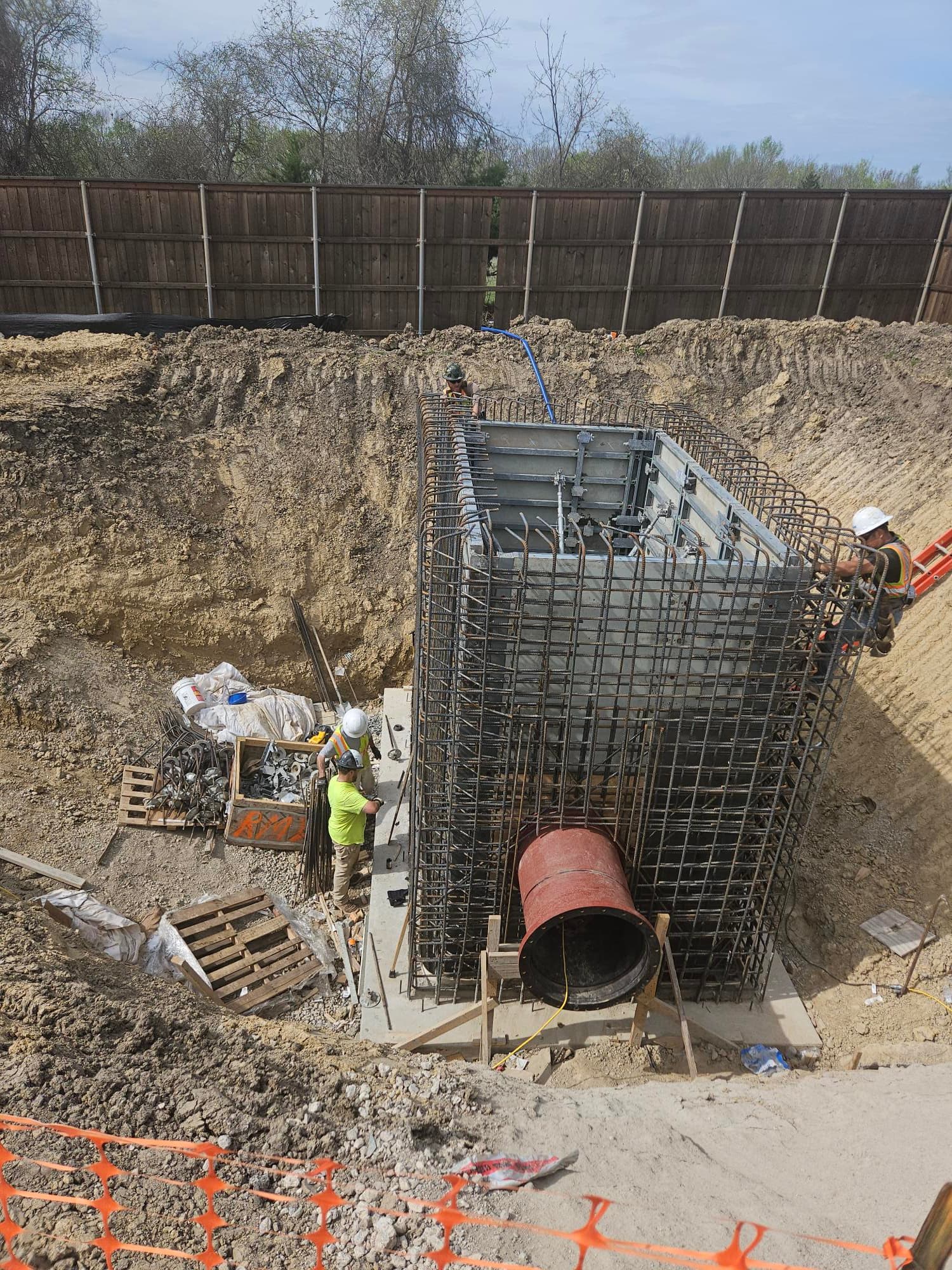

Phase II improvements at Mustang Creek including wet well expansion and pump upgrades.
Owner
North Texas Municipal Water District
Estimated Completion Date
Q2 2026
Location
Forney, TX
Scope

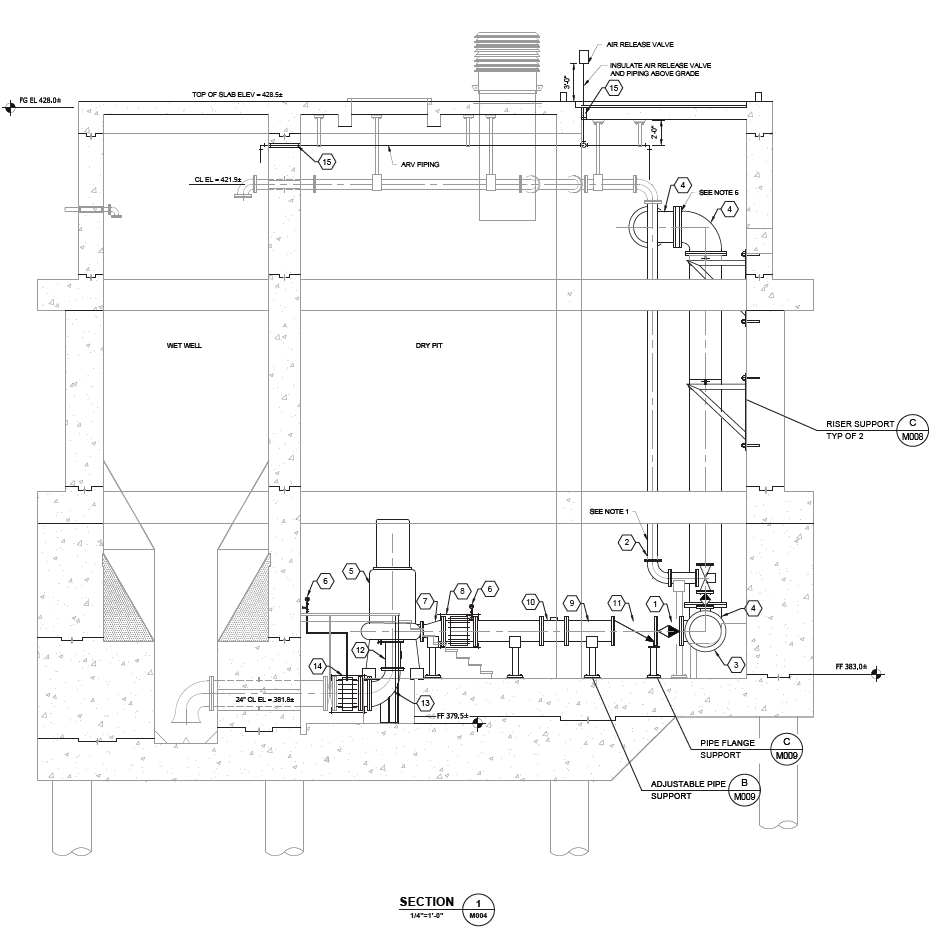

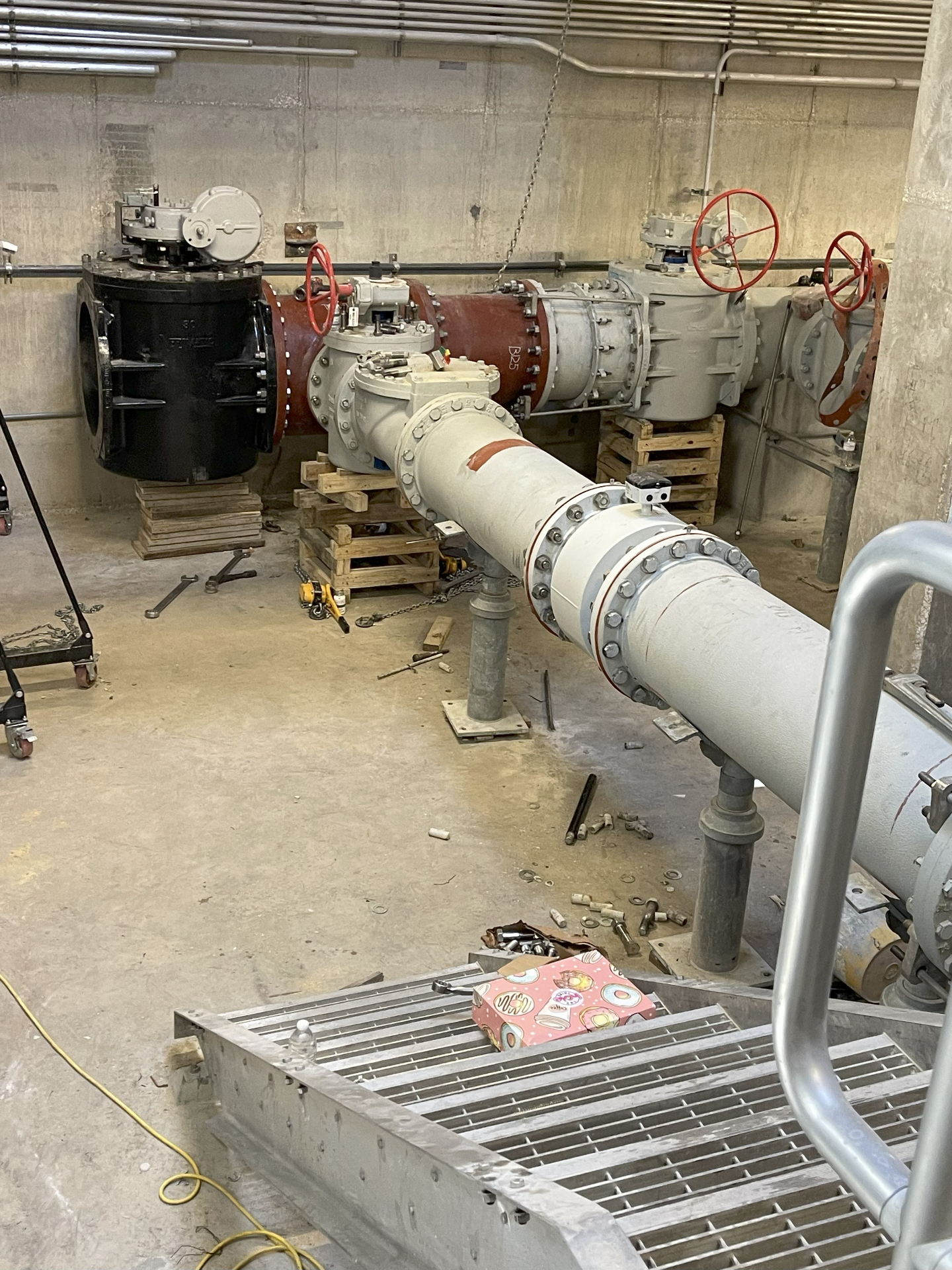

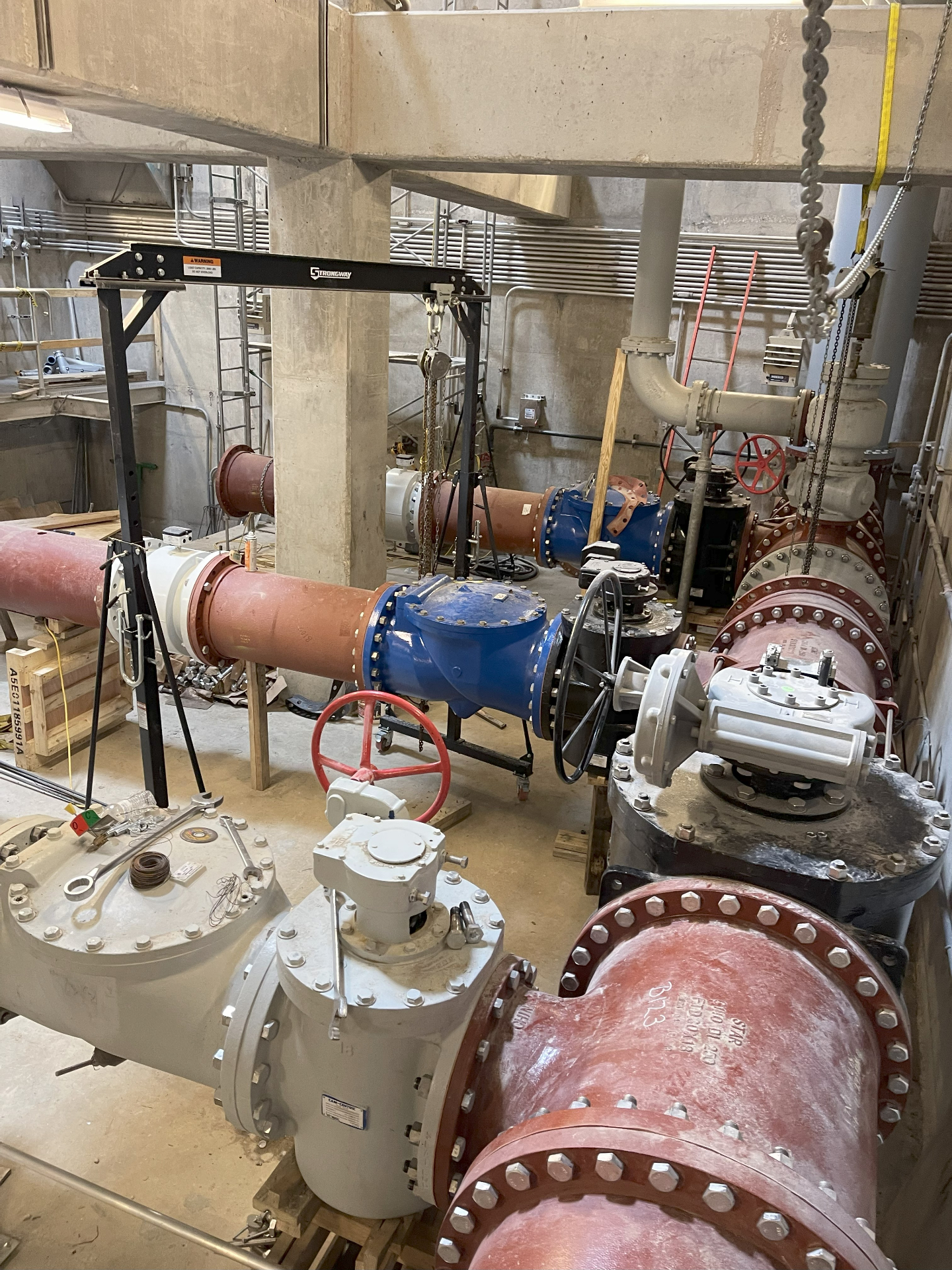

As a subcontractor to McKee Utility Contractors, CLW is responsible for the lift station site improvements and expanding the existing lift station capacity from 12 MGD to 30 MGD. This is accomplished by relocating one existing pump, installing two new 400hp overhung-coupled pumps, upsizing and modifying the existing discharge header to flow in two directions and installation of a 30" forcemain with a new flow meter and vault. Additionally, the electrical and HVAC systems were upgraded to accommodate the new pumping demands.
Contract Price
$8,000,000
