[IN PROGRESS]Storage Tank
Shiloh System Ground Storage Tank
Construction of a new ground storage tank with associated flow metering and piping.
Owner
North Texas Municipal Water District
Estimated Completion Date
Q2 2027
Location
Plano, TX
Scope

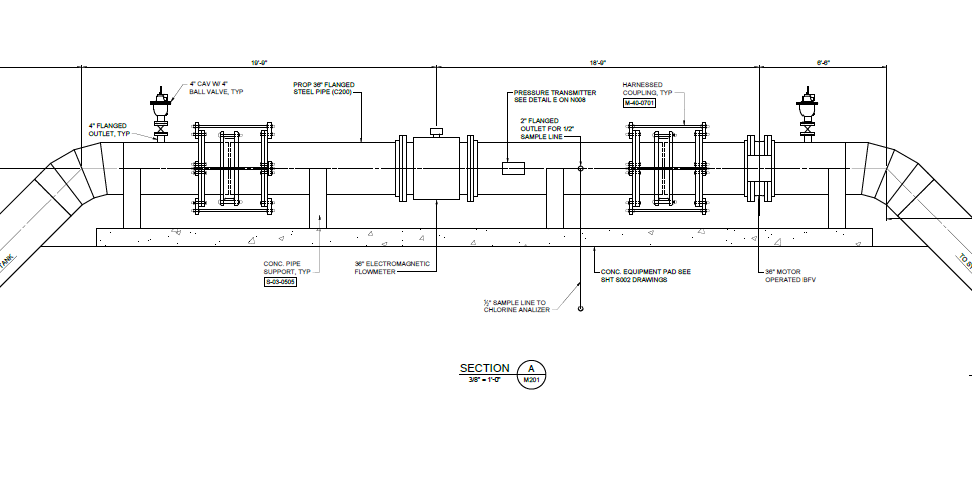

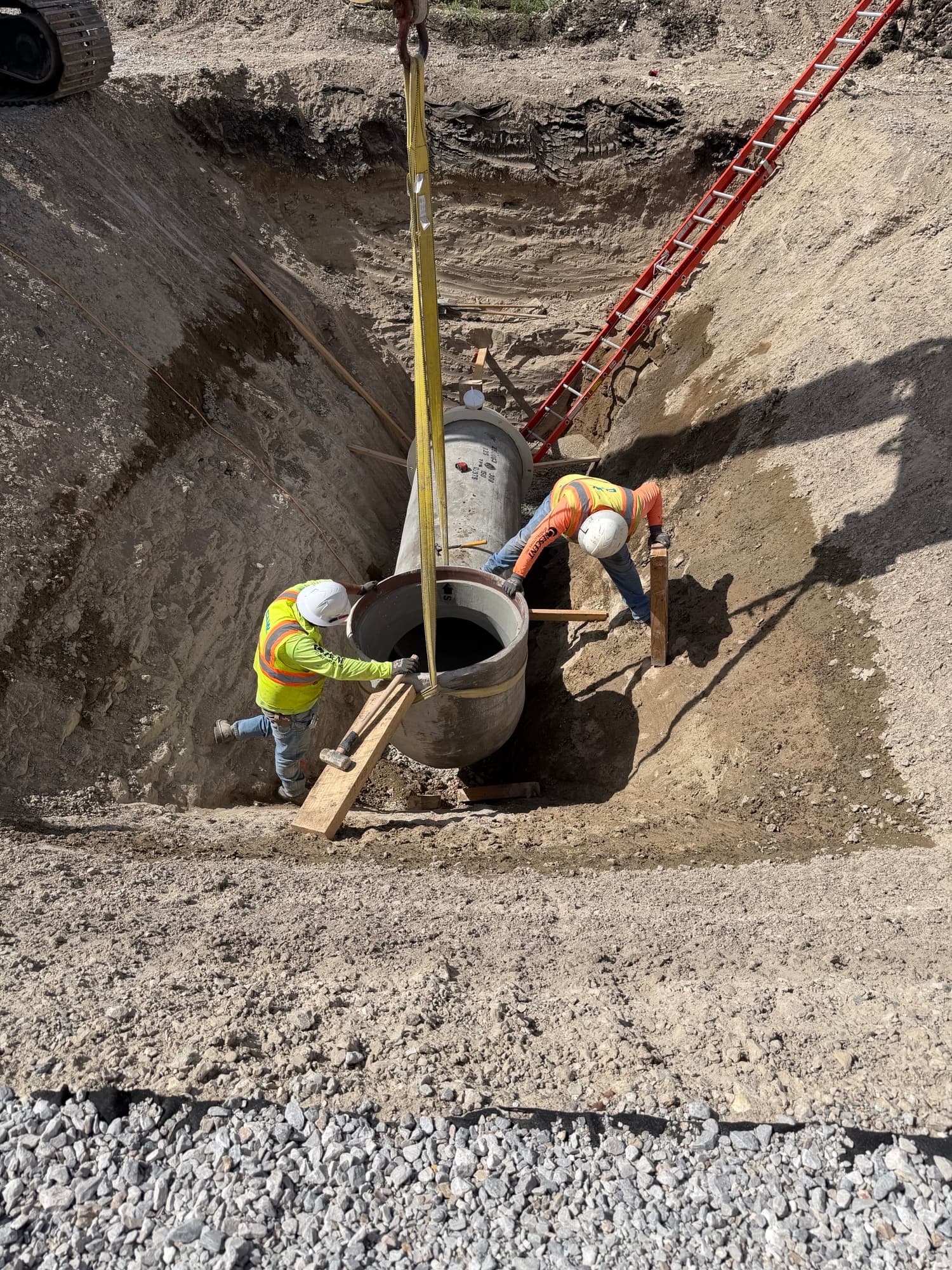

Construction of a 4.15-MG ground storage tank with all piping and appurtenances, an above ground meter station, a check valve vault, approximately 925-lf of 36-inch bar-wrapped pipe, and 100-lf of 54" steel casing tunneled below Custer Road connecting to the new 36-inch NTMWD Plano pipeline. Site improvements include new concrete paving, turning lanes into the site, perimeter fencing and a precast electrical building housing electrical and instrumentation improvements.
Contract Price
$12,900,000
